Rubber U-Strap Clamp

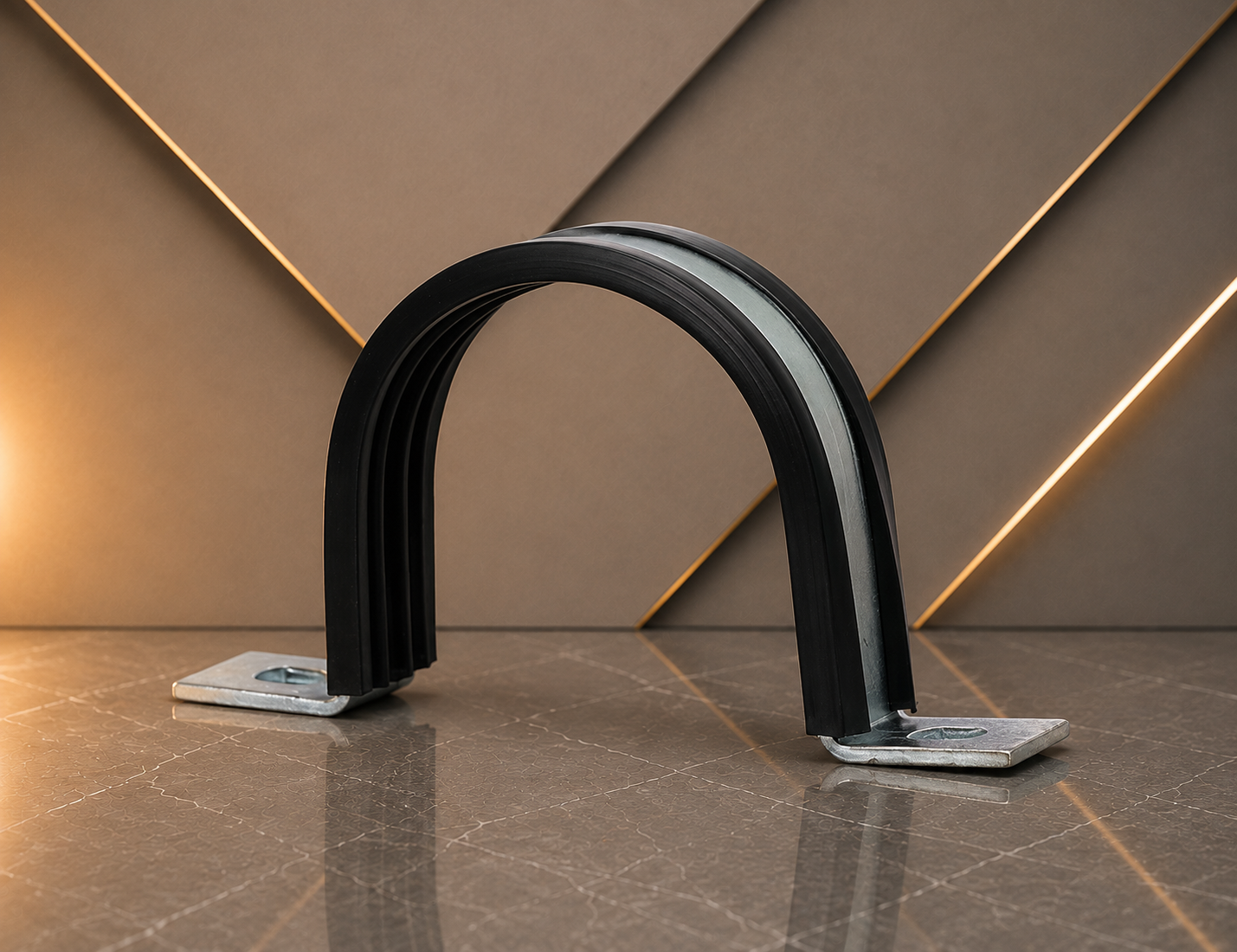

Rubber U-Strap Clamp is designed to provide firm and reliable support for pipes, tubes, and conduits while protecting them from vibration, abrasion, and surface damage. Its U-shaped profile combined with an EPDM rubber lining ensures a secure fit, reduces operational noise, and prevents direct metal-to-metal contact for enhanced pipe safety.

Manufactured from premium-quality galvanized steel with a durable rubber insert, Rubber U-Strap Clamp delivers excellent durability, corrosion resistance, and dependable performance in demanding environments. It is widely used in HVAC installations, plumbing systems, electrical conduit routing, refrigeration lines, and industrial piping applications where stable support and vibration isolation are essential.

Construction Features

1) Used to mount plain or insulated pipes.
2) EPDM lining for suppression of sound and vibrations.
3) STemperature range: -20°C to 110°C.

Product Specification

1) Material: Mild Steel.
2) Designed to meet MSS SP-58 Type-26.
3) Electrogalvanized as per ASTM B633.
4) Hot-dip galvanized as per ASTM A123.

⁠ ⁠ ⁠Rubber U Strap ClampProduct Dimensions

Product Code Nominal Pipe Size (IN) Pipe Size (MM) Pipe OD D (MM) Overall Dimension A Distance B/W Two Bolt B Side Screw Size Max Load (KG)
DPRUSC022 1/2" DN15 21.3 76 51 M8 500
DPRUSC028 3/4" DN20 26.7 82 57 M8 500
DPRUSC035 1" DN25 33.4 89 64 M8 500
DPRUSC040 1 1/4" DN32 42.1 96 71 M8 500
DPRUSC048 1 1/2" DN40 48.2 102 77 M8 500
DPRUSC054 – – 54 108 83 M8 500
DPRUSC060 2" DN50 60.3 114 89 M8 500
DPRUSC065 2 1/2" DN65 73 145 113 M8 600
DPRUSC082 – – 82 152 120 M8 600
DPRUSC090 3" DN80 88.9 160 128 M8 600
DPRUSC100 3 1/2" DN90 101.6 170 138 M8 600
DPRUSC108 – – 108 178 146 M8 600
DPRUSC115 4" DN100 114.3 185 153 M8 600
DPRUSC126 – – 126 196 146 M8 600
DPRUSC125 5" DN125 141.3 210 178 M10 600
DPRUSC148 – – 148 218 186 M10 600
DPRUSC155 – – 155 225 193 M10 600
DPRUSC168 6" DN150 168.3 237 205 M10 600
DPRUSC179 – – 179 249 217 M10 600
DPRUSC190 – – 190 260 228 M10 800
DPRUSC205 – – 205 275 243 M10 800
DPRUSC219 8" DN200 219.1 289 257 M10 800
DPRUSC230 – – 230 300 268 M10 800
DPRUSC241 – – 241 332 291 M12 1250
DPRUSC263 – – 263 354 313 M12 1250
DPRUSC273 10" DN250 273 364 323 M18 1250
DPRUSC295 – – 295 386 345 M18 1250
DPRUSC300 12" DN300 323.8 417 376 M18 1250
DPRUSC350 14" DN350 355.6 447 409 M18 1800
DPRUSC374 – – 374 465 427 M18 1800
DPRUSC400 16" DN400 406.4 497 459 M18 1800
DPRUSC432 – – 432 523 485 M18 1800
DPRUSC450 18" DN450 457.2 547 509 M18 1800
DPRUSC482 – – 482 573 535 M18 1800
DPRUSC500 20" DN500 508.2 599 561 M18 1800
DPRUSC533 – – 533 624 586 M18 1800
DPRUSC559 – – 559 650 612 M18 1800
DPRUSC583 – – 583 674 636 M18 1800
DPRUSC600 24" DN600 609.6 701 663 M18 1800
DPRUSC658 – – 658 766 721 M18 2300
DPRUSC690 – – 690 798 753 M18 2300
DPRUSC760 – – 760 868 823 M18 2300
DPRUSC863 – – 863 971 926 M18 2300
